How To Wire LiFePO4 Batteries in Parallel vs. Series: Complete Guide

LiFePO4 batteries have become a popular choice for solar systems, RVs, marine applications, and backup power. They provide longer lifespan, consistent performance, and more usable energy compared to traditional battery options. But when one battery is not enough to run your inverter, appliances, or energy system, you may need to connect multiple batteries together.

The connection method decides how your battery system works:

• Series connection: It increases voltage for higher-voltage systems

• Parallel connection: It increases capacity for longer-lasting power

This guide will explain how to wire LiFePO4 batteries in series and parallel and help you choose an appropriate setup based on your power requirements.

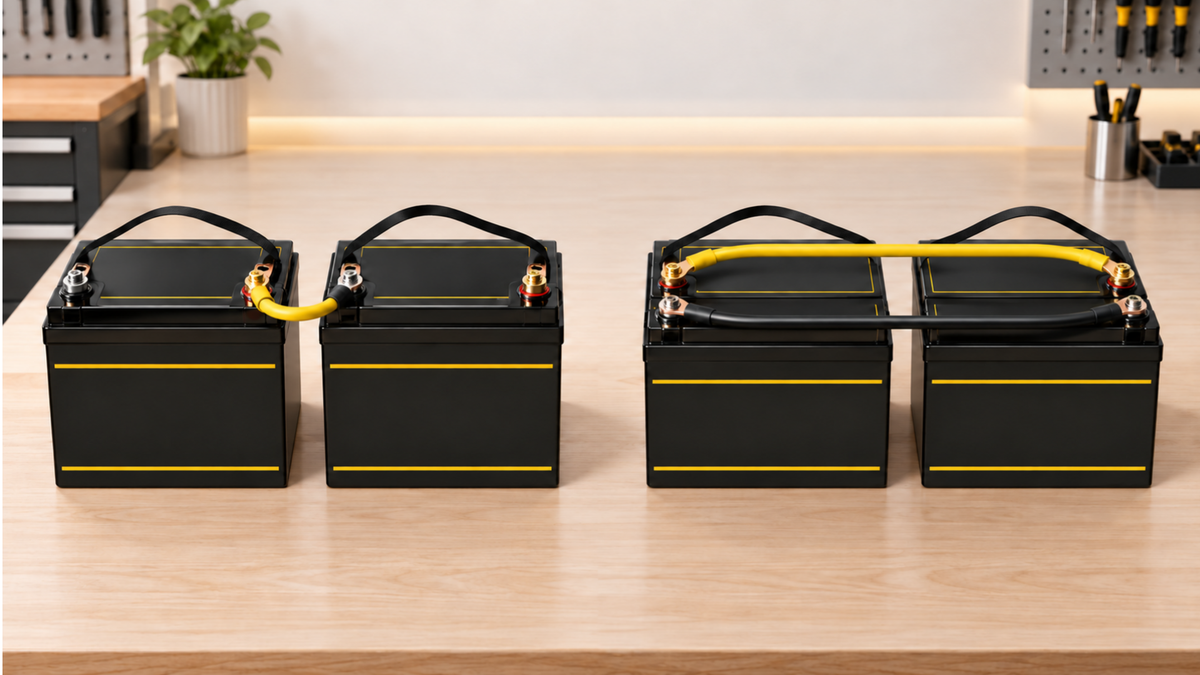

Brief Overview of Series vs Parallel LiFePO4 Wiring

Not Sure Which Setup You Need?

Start with the input voltage of your inverter, motor controller, or charge controller.

• 12V system that needs more runtime or redundancy →wire in parallel

• 24V, 36V, or 48V system → wire in series

• Higher voltage and more capacity → wire in series-parallel

What Is a Series Connection in LiFePO4 Batteries?

In this wiring configuration, the positive terminal of one battery connects to the negative terminal of the next battery. In a series string, voltage adds while amp-hour capacity stays the same.

For example, four 12.8V LiFePO4 batteries wired in series produce a 51.2V system with the amp-hour rating of a single battery.

Series wiring is standard in 24V, 36V, and 48V applications including:

• Electric golf carts

• Off-grid solar energy storage systems

• Marine trolling motor setups

• Residential backup power systems that use 48V inverters

When Should You Use a Series Connection?

Use a series connection when your inverter, motor controller, or charge controller requires a voltage higher than 12V. Here are the common triggers:

• A 24V, 36V, or 48V inverter

• Long DC cable runs where lower current reduces voltage drop and cable cost

• Solar charge controllers rated for higher battery voltage

• High-power appliances that require more than 3000W continuous

Higher voltage means lower current for the same power. A 3,000W load draws about 234A at 12.8V but only about 59A at 51.2V. Lower current means thinner cable, less voltage drop, and lower cost.

How Do You Connect LiFePO4 Batteries in Series? (Step-by-Step)

Before you connect them, you need to ensure two things:

• The batteries you will be using are compatible with series operation

• Follow the manufacturer’s recommendations

Step 1: Confirm Series Compatibility

Not all LiFePO4 batteries are designed for series connections. There are some 12V LiFePO4 batteries that allow you to connect 2,3 or 4 batteries in series.

Before you connect the batteries in series:

• Check the battery manufacturer's specifications

• Confirm the maximum number of batteries allowed in series

• Make sure the BMS can handle the voltage your system needs.

Step 2: Use Matching Batteries

For a reliable series battery bank, use batteries with:

• Same voltage rating

• Same capacity (Ah)

• Same chemistry

• Same brand and model

• Similar age and usage history

The same type of batteries helps them charge evenly and work better together.

Step 3: Fully Charge and Balance Batteries Before Connection

In a series string, every battery carries the same current. A battery with a lower charge level reaches its low-voltage cutoff first, and its BMS shuts down the entire string while the other batteries still have energy. The reverse happens during charging: the fullest battery reaches its cutoff first and stops charging for all. Before you connect the batteries:

• Charge each battery separately using a LiFePO4-compatible charger

• Confirm all batteries have a similar voltage level

• Keep the voltage difference very small (ideally within 0.05V)

Step 4: Connect Batteries in Series

In a series connection:

• Connect the positive (+) terminal of one battery to the negative (-) terminal of the next battery

• Repeat this connection for all batteries

• The extra negative (-) terminal on the first battery and positive (+) terminal on the last battery will be used as the system output

Here is the diagram showing how two batteries can be connected in a series configuration:

Step 5: Connect the Correct Charger

A series battery bank requires a charger designed for the total system voltage. It helps maintain proper charging performance. Here are some of the examples:

Step 6: Add Circuit Protection

Circuit protection helps protect your batteries, equipment, and wiring from damage. You need to connect a fuse or DC breaker to the positive (+) output cable of the battery bank. When you look for the right protection device, consider:

• Maximum current your system uses

• Cable size and rating

• Your system requirements

Step 7: Connect Loads Across the Entire Battery Bank

When using batteries in series:

• Connect your inverter or load to the full battery bank output

• Do not connect the load to only one battery

Before Powering Your System, Check:

✓ Batteries are compatible with series operation

✓ All batteries have matching specifications

✓ Connections are tight and secure

✓ Charger matches total battery voltage

✓ Fuse/breaker protection is installed

✓ Load is connected across the complete battery bank

What Is a Parallel Connection in LiFePO4 Batteries?

A parallel connection is a wiring configuration where all positive terminals connect together, and all negative terminals connect together. In a parallel bank, capacity (amp-hours) adds while voltage stays the same as a single battery. Four 12.8V 100Ah batteries wired in parallel produce a 12.8V system with 400Ah of capacity.

Parallel wiring is standard in RV house battery banks, 12V marine electronics, off-grid cabins with 12V loads, and backup systems where redundancy matters more than higher voltage.

When Should You Use a Parallel Connection?

Use a parallel connection when your system already runs at 12V, and you need more runtime, more surge current, or redundancy. The common triggers include:

• RV house battery banks

• 12V marine electronics

• Off-grid cabins and solar storage systems

• Backup power systems requiring additional battery capacity

Example: A 2.56 kWh bank running a 500W load lasts about 5 hours before inverter losses.

How Do You Connect LiFePO4 Batteries in Parallel? (Step-by-Step)

Before connecting batteries, make sure all batteries are compatible and properly prepared.

Step 1: Use Matching LiFePO4 Batteries

For the best performance, connect batteries with:

• Same voltage rating

• Same capacity (Ah)

• Same brand and model

• Similar age and usage history

Avoid mixing batteries with different specifications, as they may charge and discharge unevenly.

Step 2: Fully Charge and Balance the Batteries

Before connecting batteries together:

• Charge each battery individually

• Ensure their voltage levels are nearly identical (ideally within 0.05V)

• Confirm the batteries are at a similar state of charge

When batteries at different voltages are connected, current flows from the higher-voltage battery to the lower one until they equalize. That surge can trip a BMS or overheat connections.

Step 3: Connect Batteries Through Busbars

Instead of connecting batteries directly in a chain, use common busbars. A busbar provides a central connection point and helps each battery share the load more evenly. Here is the diagram showing how to connect the batteries through busbars:

Step 4: Use Equal-Length Battery Cables

Connect each battery to the busbars using:

• Same cable length

• Same cable thickness

• Properly rated connectors

Equal cable resistance helps ensure each battery contributes a similar amount of current.

Step 5: Add Individual Protection for Each Battery

Install a fuse or DC breaker on the positive cable of each battery. This helps isolate an individual battery if a fault occurs.

Step 6: Connect the Inverter or Load Correctly

For multiple batteries, connect the inverter:

• Positive terminal → one end of the positive busbar

• Negative terminal → opposite end of the negative busbar

This helps distribute current evenly across all batteries instead of making one battery work harder than the others.

The diagram below shows how to connect the inverter to the positive and negative terminals of a battery bank:

Before Turning On Your System, Check:

✓ Battery voltage is matched

✓ Connections are tight

✓ Cables are correctly sized

✓ Fuses/breakers are installed

✓ Charger supports the battery bank capacity

Series vs Parallel LiFePO4: Which One Is Better?

Neither configuration is universally better. The choice depends on the voltage your equipment requires.

• Choose series when your inverter or motor requires 24V, 36V, or 48V.

• Choose parallel when your system is 12V, and you need longer runtime or redundancy.

• Choose series-parallel when you need both higher voltage and higher capacity.

Can You Wire LiFePO4 Batteries in Series and Parallel Together?

Yes. A series-parallel configuration combines both methods to increase voltage and capacity simultaneously. Four 12V 100Ah batteries arranged as two series pairs, then connected in parallel, produce a 24V 200Ah system with 5.12 kWh of energy.

Rules for a valid series-parallel bank:

• Build the series strings first and verify each string voltage matches within 0.1V before paralleling.

• Every string must contain identical batteries in the same order.

• The battery manufacturer must explicitly approve series-parallel operation in the manual.

• Each string needs its own fuse before the parallel busbar.

How Many LiFePO4 Batteries Can You Wire in Series or Parallel?

The maximum count is set by the BMS specification, not the chemistry. Standard 12V LiFePO4 packs typically allow 2 to 4 batteries in series and 4 to 16 in parallel. Communication-enabled batteries with RS485 or CAN bus (used in server-rack and modular home storage systems) can scale to 16 in series and 32 in parallel.

At Enexertech, our 12V LiFePO4 batteries support up to 4 units in series (48V systems) and up to 4 units in parallel per the product datasheet.

Critical Safety Rules for LiFePO4 Series and Parallel Wiring

1. Never Mix Chemistries

LiFePO4 must never be wired with lead-acid, AGM, gel, or lithium-ion NMC batteries. Charging voltages and discharge curves are incompatible.

2. Never Mix Brands, Models, or Ages

Even two "identical" batteries from different production runs can have slightly different internal resistance. Buy all batteries in the same batch.

3. Always Install DC Fuses

LiFePO4 batteries can release very high short-circuit current, creating a fire risk. Use a fuse that:

• Is about 125% of max continuous current

• Does not exceed cable ampacity

• Has sufficient interrupt and voltage ratings

• Is installed on the positive cable near the battery

Example: A 2,000W inverter on 12.8V draws about 174A at 90% efficiency, so a 225A fuse may be suitable if the cable supports it.

4. Don't Charge Below 0°C (32°F) Without Low-Temperature Protection

Charging below freezing can cause lithium plating, which permanently reduces capacity. Check that your battery has a low-temperature charge cutoff or a built-in heater before charging in cold conditions.

5. Torque Terminals to the Manufacturer's Specification

Loose connections cause resistance, heat, and eventually fire. Enexertech batteries specify 6 to 8 Nm on M8 terminals.

6. Never Reverse Polarity

LiFePO4 batteries can deliver a fault current high enough to weld metal.

Final Thoughts on Series and Parallel LiFePO4 Wiring

Choosing the right battery connection is important for building a reliable LiFePO4 system.

• Series wiring increases voltage.

• Parallel wiring increases capacity and runtime.

• Series-parallel wiring increases both voltage and capacity.

The correct setup depends on the requirements of your inverter, motor, or charge controller and how much runtime your system needs.

One of the biggest reasons LiFePO4 battery banks fail early is using batteries that do not match. Batteries should have the same brand, model, age, and charge level. Proper fuse protection on positive cables is also important for safety.

Following these guidelines helps your battery bank perform better and last longer. Enexertech LiFePO4 batteries are designed with integrated BMS protection, matched cell batches, and detailed series-parallel guidance to help you build a reliable energy system.
