11 Common LiFePO4 Battery Installation Mistakes (And How to Avoid Them)

 A LiFePO4 battery is engineered to deliver 4,000+ cycles and 10+ years of reliable service, outlasting lead acid batteries by a decade or more. But that lifespan is only guaranteed if the battery is installed, charged, and maintained correctly.

The mistakes that kill a deep cycle LiFePO4 battery early are rarely about a defective cell. They are almost always about avoidable errors during setup and daily use. This post covers all 11 of them, with exact numbers and specific fixes for each one.

The 11 Mistakes at a Glance

1) Charging a LiFePO4 Battery With a Lead Acid Profile

Charging a LiFePO4 battery with a lead acid charger profile is the single most common LiFePO4 charging mistake, and it prevents the battery from ever reaching a full, healthy state of charge.

Many LiFePO4 systems either disable float charging or use a lower float voltage around 13.4V to 13.6V, depending on manufacturer recommendations and pack configuration.

Symptoms you will notice:

• The charger housing or cables run noticeably hot during charging.

• The battery management system (BMS) cuts out near full charge.

• Charging never completes, the battery seems to plateau at 80% to 90%.

Exact fix:

• Reprogram every charging source (shore power converter, solar charge controller, alternator) to a LiFePO4 specific CC/CV profile before the first charge.

• Configure bulk and absorption parameters exactly to the full-pack target matching your system voltage (e.g., 14.4V for a standard 12V pack, or 28.8V for a 24V pack), and program float levels precisely to the model's specification. Check here to know more.

• Confirm your solar charge controller specifically lists LiFePO4 as a selectable battery type, not just "lithium".

If you are still weighing whether lithium is worth the switch, Enexer's LiFePO4 vs Lead Acid battery comparison breaks down the full cost and performance difference before you commit.

2) Undersizing Wire or Fuse for a 100Ah Battery's Output Current

Undersizing the cable and fuse for a LiFePO4 battery creates resistance at the connection points, and unlike lead acid batteries, a LiFePO4 battery delivers its full rated current with almost no voltage sag, which means undersized wiring heats up fast under a real load.

The main fuse must be placed within 18 inches of the positive terminal, and the cable gauge must be sized for the worst case continuous current draw of the system, not the average or nameplate estimate.

Symptoms you will notice:

• Lugs and cable runs feel warm to the touch after a sustained draw.

• Voltage drops noticeably when a large inverter or motor starts.

• The inverter alarms or shuts off when a high draw appliance kicks in.

Exact fix:

• Calculate your system's worst case continuous current and size cable for that load at your specific run length, since longer runs need heavier gauge.

• Place the main fuse or circuit breaker within 18 inches of the positive terminal to protect the full cable run.

• Use a torque rated, tinned copper lug and a marine grade cable rated for the full current, not automotive cable rated for intermittent use.

3) Skipping Terminal Torque Specs During Installation

A loose terminal connection on a LiFePO4 battery increases electrical resistance at the post, and that resistance converts directly into heat every time current flows. Over weeks and months of cycling, that heat degrades the terminal, softens the insulation on adjacent cables, and creates an intermittent connection that is extremely difficult to diagnose without a thermal camera.

Consult your specific battery data sheet for terminal connection torque values. Overtightening or under-tightening the connections can result in terminal breakage, overheating, terminal or battery casing melting.

Symptoms you will notice:

• Localized heat at one terminal post during or after a charge or discharge cycle.

• Voltage readings that fluctuate without a change in load.

• Physical discoloration or melting on cable insulation near the terminal.

Exact fix:

• Use a calibrated torque wrench, not a standard socket wrench tightened by feel, to hit the manufacturer's specified Nm value.

• Apply the correct terminal torque spec during initial installation, then schedule a recheck at 2 to 4 weeks after installation once the connections have settled through vibration.

• Inspect terminal connections annually and after any significant vibration event, such as long road trips or rough water passages.

4) Charging a LiFePO4 Battery Below 0°C (32°F)

Temperature is one of the primary environmental factors affecting lithium battery safety and longevity in residential and mobile applications. Charging a LiFePO4 battery at or below 0°C (32°F) causes irreversible lithium plating on the anode, permanently reducing the battery's capacity and cycle life.

The safe charging temperature range for LiFePO4 chemistry is 0°C to 45°C (32°F to 113°F). This is a particularly high risk mistake in Canadian winters, northern US climates, and uninsulated RV or marine compartments.

Symptoms you will notice:

• The charger hunts back and forth and never completes the charge cycle.

• Usable capacity seems smaller after a cold overnight trip.

• The battery voltage recovers slowly after a cold weather discharge.

Exact fix:

• Choose a lithium battery for RV, marine, or solar applications with built in cold temperature charge protection in the BMS, which automatically blocks charging when the cell temperature drops below 0°C.

• Allow the battery to warm up naturally to above 0°C before reconnecting to a charger after cold storage.

• If your installation is in an uninsulated compartment, add a temperature sensor to your charge controller and set a low temp disconnect at 2°C to 5°C as a buffer.

Proper storage between seasons is one of the biggest factors in hitting that 10-year mark. See the full step-by-step breakdown in the Enexer LiFePO4 Battery Storage Best Practices Guide.

5) Mounting a LiFePO4 Battery in a Hot or Unventilated Space

Mounting a LiFePO4 battery in an engine bay, sealed compartment near the exhaust, or uninsulated exterior box exposes it to temperatures that regularly exceed its safe operating ceiling.

A deep cycle LiFePO4 battery parked at the top of its thermal tolerance every time the engine runs or the sun hits the compartment accumulates stress that shortens cycle life far faster than normal discharge patterns.

Symptoms you will notice:

• Faster than expected capacity fades within the first 12 to 18 months.

• The BMS triggers thermal protection cutoffs during or after heavy use on hot days.

• The battery housing feels hot to the touch after a normal charge cycle.

Exact fix:

• Mount in a clean, dry, ventilated location within the 0°C to 45°C operating range.

• Keep the battery away from exhaust components, engine heat sources, and uninsulated surfaces that absorb direct sunlight.

• If mounting in a confined space, add passive ventilation or a small fan to keep ambient temperature stable.

6) Mixing Old, New, or Different-Brand Batteries in One Bank

Combining a used LiFePO4 battery with a new one, or pairing batteries from different manufacturers in one bank, creates a voltage and capacity imbalance from day one. Before connecting any two lithium batteries in parallel, their resting voltages must be within 0.1V to 0.2V of each other.

A larger gap means the stronger battery immediately begins trying to charge the weaker one, the BMS on one or both units may trip, and the weaker battery degrades faster under the uneven load.

Symptoms you will notice:

• One battery in the bank runs consistently warmer than the other.

• Total bank capacity is lower than the sum of individual ratings.

• One battery reaches its low voltage cutoff significantly earlier than the rest.

Exact fix:

• Build your battery bank exclusively from identical batteries purchased at the same time, same model, same production batch where possible.

• Check resting voltage on every unit with a multimeter before parallel connection and confirm all are within 0.1V to 0.2V of each other.

• Never add a new battery to an existing bank of partially cycled units without matching voltages first.

For the exact bulk, absorption, and float voltage settings for your specific pack, refer to Enexer's LiFePO4 Battery Charging Guide with verified specs for 12V, 24V, 36V, and 48V systems.

7) Skipping Cell Balancing Before Wiring Batteries in Series or Parallel

Wiring multiple LiFePO4 batteries in series or parallel without pre-balancing the individual packs means the battery management system on whichever battery reaches its voltage ceiling first will trigger a protection cutoff before the rest of the bank has finished charging.

The result is a bank that looks full on the monitor but is only using a fraction of its actual capacity. Each battery must be individually charged to 100% before the bank is connected for the first time.

Symptoms you will notice:

• The bank appears fully charged on the monitor but delivers less runtime than expected.

• One battery in the bank reaches full charge well before the others.

• Usable capacity of the assembled bank is noticeably less than the sum of individual ratings.

Exact fix:

• Charge each battery individually to 100% before assembling the bank, confirming with a multimeter that each pack reads within 0.1V of each other at rest.

• Allow all batteries to rest at full charge for 30 minutes before making the parallel or series connection.

• Use a battery with an active balancing BMS that continues to equalize cells during normal cycling, not just at end of charge.

8) Using an Incompatible or Generic Lithium Charger

Using a generic "lithium compatible" charger on a LiFePO4 battery is a mistake because not all lithium chemistries share the same voltage requirements. A standard lithium ion or NMC charger targets a full charge cell voltage of around 4.2V per cell.

A LiFePO4 charge voltage tops out at roughly 3.65V per cell. Using the wrong chemistry setting means the charger either stops too early and leaves the battery undercharged, or pushes above the safe voltage window and stresses the cells.

Symptoms you will notice:

• The battery never reads above 95% to 98% on the monitor, regardless of how long it charges.

• The BMS repeatedly rejects current from the charger near full charge.

• Charging time is significantly longer than the manufacturer's stated estimate.

Exact fix:

• The charger label explicitly states LiFePO4, not just "lithium" or "Li ion", and lists a maximum per cell charge voltage of roughly 3.65V.

• Cross check the charger's output voltage with a multimeter at the terminals before the first use.

• For solar applications, confirm the LiFePO4 versus lead acid battery setting on the charge controller is toggled correctly, not just set to a generic lithium default.

9) Letting a LiFePO4 Battery Sit at Low Voltage Disconnect

When a LiFePO4 battery hits its low voltage disconnect threshold, the BMS cuts output to protect the cells from over discharge. The battery is not dead, the protection circuit simply shut things off.

The mistake is leaving it there for days or weeks, especially with small parasitic loads like monitors, alarms, or clocks still drawing current below the cutoff. The recommended storage state of charge for LiFePO4 chemistry is 50% to 60%, not 0% and not 100%.

Symptoms you will notice:

• The battery appears completely dead and will not respond to a standard charger.

• The monitor shows 0% state of charge even though the cells are not fully depleted.

• Resting voltage has dropped well below the pack's normal resting range.

Exact fix:

• Recharge the battery promptly after any low voltage disconnect event, and do not leave it sitting at the cutoff threshold.

• For long term storage of 30 days or more, bring the LiFePO4 battery to its peak lifespan by storing at 50% to 60% state of charge and disconnecting all loads.

10) Installing the Battery Monitor Shunt in the Wrong Position

Installing the shunt for a battery monitor in the wrong position on a LiFePO4 battery system produces state of charge readings that are consistently inaccurate, either showing full when the battery is actually draining, or alarming without a real cause.

For a standard retrofit installation, the shunt belongs on the negative return path between the battery's negative terminal and all system loads, with every current return path routed through it. Any load grounded directly to the battery negative post instead of through the shunt bypasses the measurement entirely.

Symptoms you will notice:

• The monitor shows a high state of charge right up until the BMS trips under a heavy load.

• Calculated amp hour usage does not match the runtime you are actually getting.

• The shunt runs warm, indicating more current than expected is flowing through it.

Exact fix:

• Place the shunt on the negative return conductor between the battery negative terminal and all loads, inverters, and chassis grounds.

• Route every return path through the shunt, since no load should ground directly to the battery negative post.

• Verify the shunt is reading correctly by cross checking with a clamp style DC ammeter on the main negative cable.

11) Forgetting to Register the Battery's Warranty

A battery that develops a cell defect three years into service with no registration on file has no warranty protection, leaving you to absorb the full replacement cost.

Symptoms you will notice (if you skip this):

• A warranty claim years down the line comes back declined due to no registration on file.

• No purchase or serial number record makes it impossible to verify the original transaction.

• You lose access to the full 10 year LiFePO4 battery warranty term.

Exact fix:

• Register your battery on the same day you complete the installation, while the receipt and serial number are still in hand.

• Take a photo of the serial number label before mounting the battery in a hard to reach location.

• Set a calendar reminder for day 25 of ownership if you do not register immediately, giving yourself a 5 day buffer before the 30 day window closes.

Quick Reference Table: Mistake, Symptom, Fix

How a Quality BMS Prevents These 11 Mistakes

A battery management system (BMS) built into a high-quality LiFePO4 battery automatically handles the protection functions that most installation mistakes try to bypass manually.

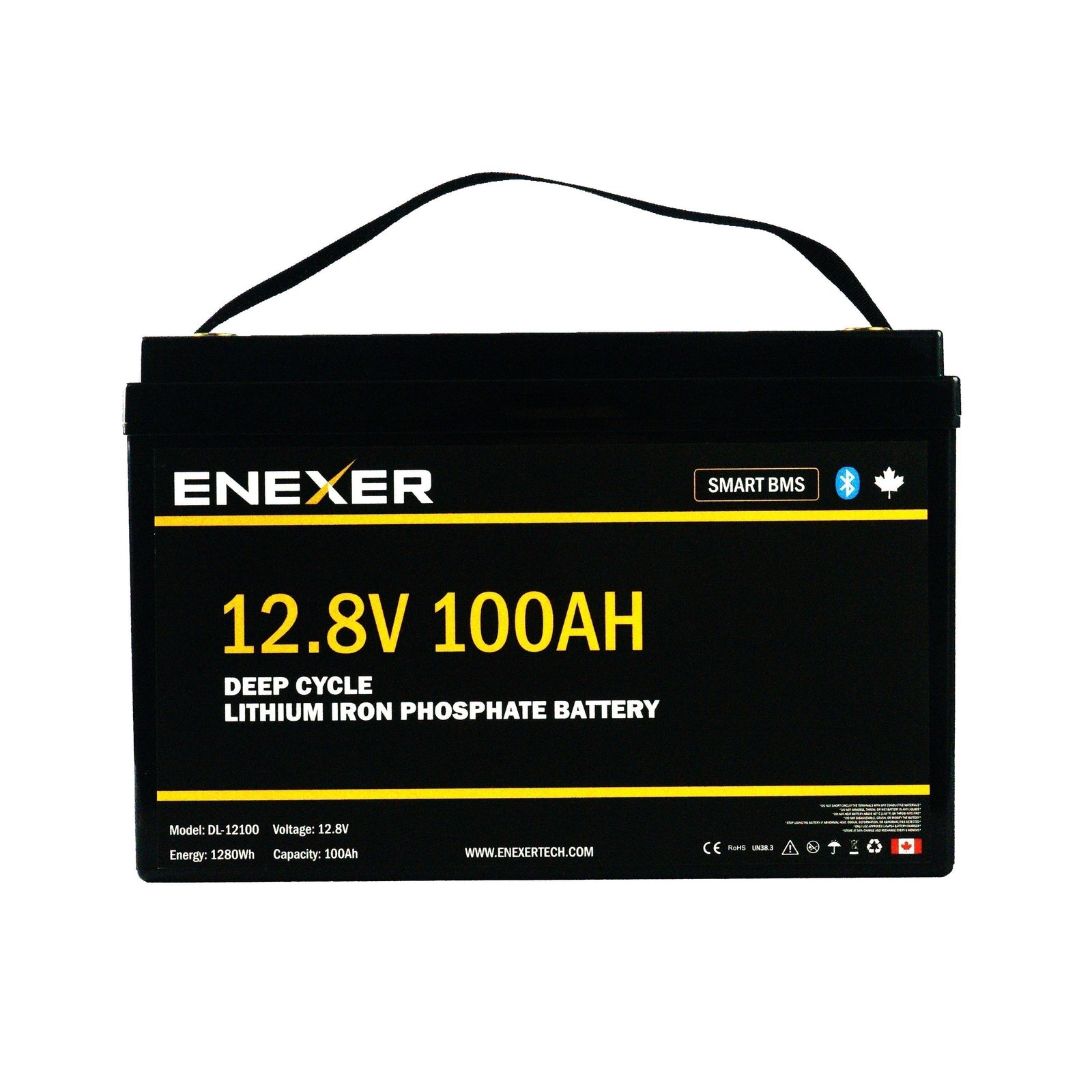

The Enexer DL-12100 includes a smart BMS with the following active protections:

• Overcharge protection: cuts charging when cell voltage reaches the 3.65V per cell ceiling.

• Over-discharge protection: disconnects output at the low voltage threshold before cells are damaged.

• Cold temperature charge protection: blocks incoming charge current when cell temperature drops to or below 0°C, preventing lithium plating in Canadian winters and cold northern climates.

• Cell balancing: continuously equalizes individual cell voltages during charging to prevent one cell from leading or lagging the pack.

• Short circuit and overcurrent protection: disconnects immediately on a fault event, protecting the wiring and load.

• Thermal protection: monitors cell temperature and disconnects if the pack exceeds its safe charging temperature ceiling of 45°C (or the manufacturer's specified limit).

The Enexer: Connect app connects via Bluetooth and gives you real-time visibility into all of these parameters, so you can catch a low-temperature condition, a cell imbalance, or a charging fault before it becomes a permanent problem.

Conclusion

Getting these 11 details right during installation is what determines whether your LiFePO4 battery delivers its full rated 4,000+ cycles or starts showing problems in the first year.

The Enexer DL-12100 is built with a smart BMS, cold temperature charge protection, Bluetooth monitoring, and a 10-year warranty to cover the gaps that even careful installers can miss.

Not sure which battery size is right for your system? Use the Enexer battery sizing calculator to confirm your setup before you buy.

When the installation is done right and the warranty is registered, a decade of reliable power is the expected outcome, not the optimistic one.
